Korisnici nam se vraćaju, creva - ne!
DexyFlex®

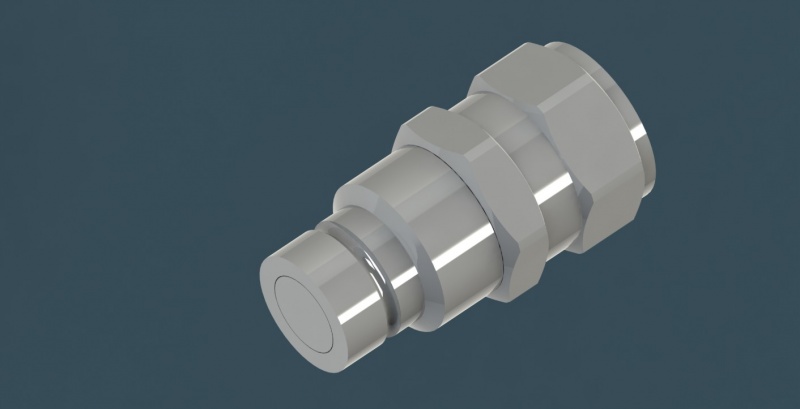

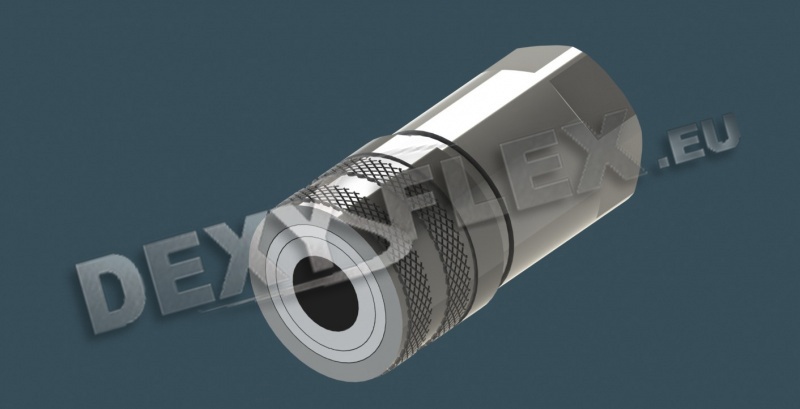

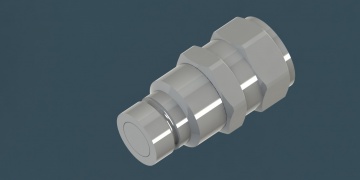

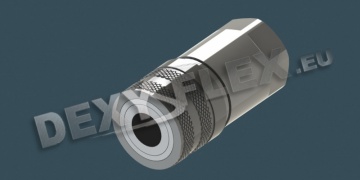

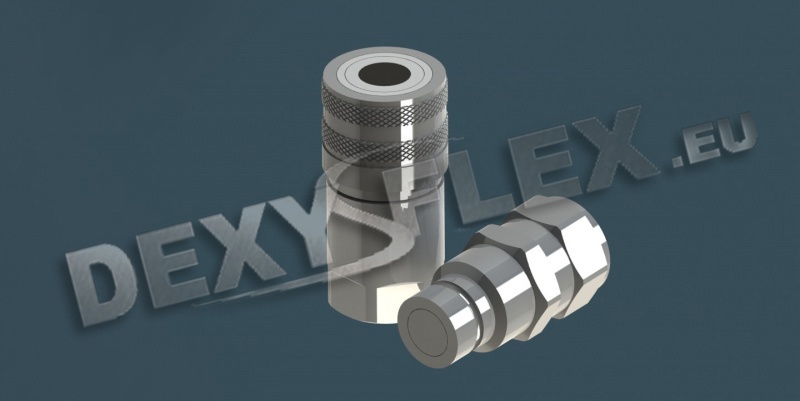

PLT4 IG - teška serija
PLT4 IG Heavy duty
Hidraulične brže spojnice
Standart: ISO 16028 - HTMA (DN13)
Occlusion: flat face
Locking: radial balls
Material: steel
Finishing: Zn-Fe (Cr III) - Zn - Ni
Threads: BSP - NPT - SAE - METRIC
Standart seals: NBR
Working temperature: -25 Co - +100 Co
Optional seals: FKM, EPDM and more
Working pressure: 350-500 bar
Connection under pressure: not allowed
| Artikal № | Cena (kom.) | Količina (kom.) | Tip | DN mm | Thread | G | Pritisak bar |
| 3035030102 | 27,38 € |
| F | 4 mm / 5/32" | BSP | G 1/8 | 500 |
| 3035030103 | 13,40 € |
| M | 4 mm / 5/32" | BSP | G 1/8 | 500 |
| 3035030302 | 26,71 € |
| F | 6 mm / 1/4" | NPT | G 1/4 | 350 |
| 3035030303 | 12,18 € |
| M | 6 mm / 1/4" | NPT | G 1/4 | 350 |
| ********** | - | - | F | 13 mm / 1/2" | G 3/8 | 350 | |
| ********** | - | - | M | 13 mm / 1/2" | G 3/8 | 350 | |
| 3035031302 | 34,57 € |
| F | 13 mm / 1/2" | NPT | G 1/2 | 350 |
| 3035031303 | 16,24 € |
| M | 13 mm / 1/2" | NPT | G 1/2 | 350 |
| ********** | - | - | F | 20 mm / 4/5" | G 1/2 | 350 | |
| ********** | - | - | M | 20 mm / 4/5" | G 1/2 | 350 | |
| 3035032402 | 48,08 € |
| F | 20 mm / 4/5" | BSP | G 3/4 | 350 |
| 3035032403 | 24,59 € |
| M | 20 mm / 4/5" | BSP | G 3/4 | 350 |
| 3035032602 | 53,89 € |
| F | 20 mm / 7/8" | G 7/8 | 350 | |
| 3035032603 | 27,61 € |
| M | 20 mm / 7/8" | G 7/8 | 350 | |
| 3035033002 | 62,06 € |
| F | 20 mm / 1 1/16" | G 1 1/16 | 350 | |
| 3035033003 | 29,09 € |
| M | 20 mm / 1 1/16" | G 1 1/16 | 350 | |
| 3035034102 | 88,06 € |
| F | 25 mm / 1" | BSP | G 1 | 350 |
| 3035034103 | 39,98 € |
| M | 25 mm / 1" | BSP | G 1 | 350 |
| 3035034502 | 96,08 € |
| F | 25 / 1 5/16" | G 1 5/16 | 350 | |
| 3035034503 | 46,02 € |
| M | 25 mm / 1 5/16" | G 1 5/16 | 350 | |
| ********** | - | - | F | 30 mm / 1 3/16" | G 1 1/4 | 350 | |
| ********** | - | - | M | 30 mm / 1 3/16" | G 1 1/4 | 350 |
