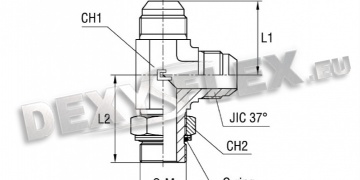

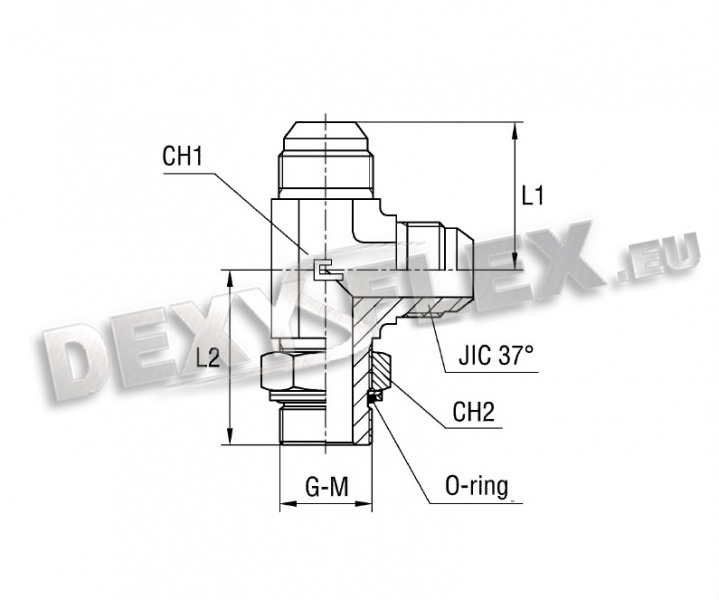

Trikraki navoj - delimično pokretan sa O-prstenom BSP

Karbon navoj završni standard body

Artikal №	Cena (kom.)	Količina (kom.)	Serija	Pritisak bar	DN mm	Ø inch	G	L1	L2	CH1	CH2	JIC 37°
**********	-	-	Universal	350	6	1/4	1/8	23	26	11	14	7/16-20
**********	-	-	Universal	315	8	5/16	1/4	24	32	14	19	1/2-20
**********	-	-	Universal	315	10	3/8	1/4	27,5	32	14	19	9/16-18
**********	-	-	Universal	250	12	1/2	3/8	32	37	19	22	3/4-16
**********	-	-	Universal	250	14-15-16	5/8	1/2	37	43	22	27	7/8-14
**********	-	-	Universal	250	18-20	3/4	3/4	42	49	27	36	11/16-12
**********	-	-	Universal	200	25	1	1	46	52	33	41	15/16-12
**********	-	-	Universal	200	30-32	11/4	11/4	53	58	41	50	15/8-12
**********	-	-	Universal	160	38	11/2	11/2	59	60	48	55	17/8-12
**********	-	-	Universal	315	6	1/4	1/4	24	32	14	19	7/16-20
**********	-	-	Universal	250	6	1/4	3/8	29	37	19	22	7/16-20
**********	-	-	Universal	250	6	1/4	1/2	31	43	22	27	7/16-20
**********	-	-	Universal	350	8	5/16	1/8	24	30	14	14	1/2-20
**********	-	-	Universal	250	8	5/16	3/8	29	37	19	22	1/2-20
**********	-	-	Universal	250	10	3/8	3/8	29,5	37	19	22	9/16-18
**********	-	-	Universal	250	10	3/8	1/2	31,5	43	22	27	9/16-18
**********	-	-	Universal	315	12	1/2	1/4	32	37	19	19	3/4-16
**********	-	-	Universal	250	12	1/2	1/2	34	43	22	27	3/4-16
**********	-	-	Universal	250	12	1/2	3/4	36	49	27	36	3/4-16
**********	-	-	Universal	250	14-15-16	5/8	3/8	37	37,5	22	22	7/8-14
**********	-	-	Universal	250	14-15-16	5/8	3/4	39	49	27	36	7/8-14
3120500630	16,34 €		Universal	250	18-20	3/4	1/2	42	47	27	27	11/16-12
**********	-	-	Universal	200	18-20	3/4	1	45	52	33	41	11/16-12
**********	-	-	Universal	250	25	1	3/4	46	50	33	36	15/16-12
**********	-	-	Universal	200	25	1	11/4	52	58	41	50	15/16-12
**********	-	-	Universal	200	30-32	11/4	1	53	58	41	41	15/8-12
**********	-	-	Universal	200	38	11/2	11/4	59	60	48	50	17/8-12
