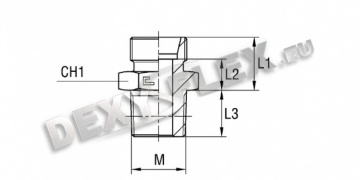

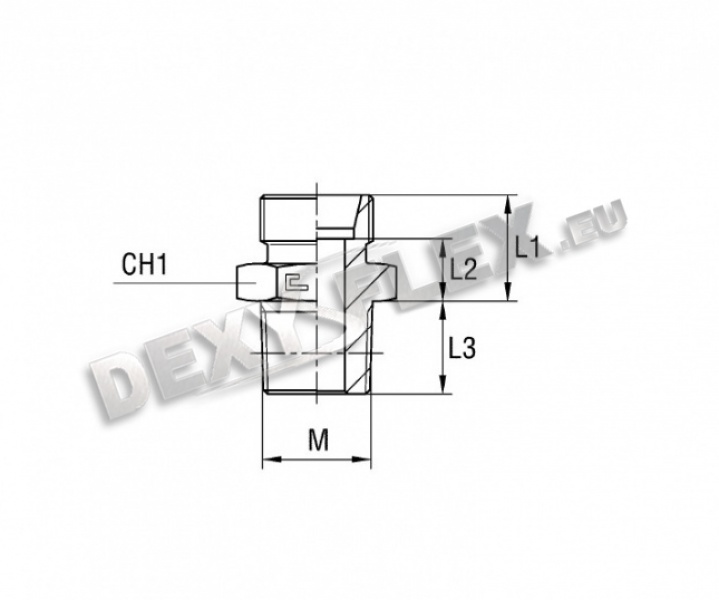

Male stud coupling metric taper - body
Male stud coupling thread metric taper - only body
| Article No. | Price (pcs.) | Quantity (pcs.) | Seria | Bar | DN mm | M | L1 | L2 | L3 | L4 | CH1 | CH2 |
| 3110190410 | 4,91 € |  | L | 315 | 6 | 10x1 | 14 | 7 | 8 | 22 | 12 | 14 |
| ********** | - | - | L | 315 | 8 | 12x1,5 | 15 | 8 | 12 | 23 | 17 | 17 |
| ********** | - | - | L | 315 | 10 | 14x1,5 | 16 | 9 | 12 | 24 | 17 | 19 |
| ********** | - | - | L | 315 | 12 | 16x1,5 | 17 | 10 | 12 | 24,5 | 19 | 22 |
| ********** | - | - | L | 315 | 15 | 18x1,5 | 18 | 11 | 12 | 26 | 24 | 27 |
| ********** | - | - | L | 315 | 18 | 22x1,5 | 19 | 11,5 | 14 | 28 | 27 | 32 |
| ********** | - | - | S | 630 | 6 | 12x1,5 | 18 | 11 | 12 | 26 | 17 | 17 |
| ********** | - | - | S | 630 | 8 | 14x1,5 | 20 | 13 | 12 | 28 | 17 | 19 |
| ********** | - | - | S | 630 | 10 | 16x1,5 | 20 | 12,5 | 12 | 28,5 | 19 | 22 |
| ********** | - | - | S | 630 | 12 | 18x1,5 | 22 | 14,5 | 12 | 30,5 | 22 | 24 |
| ********** | - | - | S | 630 | 14 | 20x1,5 | 24 | 16 | 14 | 34 | 24 | 27 |
| ********** | - | - | S | 400 | 16 | 22x1,5 | 24 | 15,5 | 14 | 34 | 27 | 30 |
